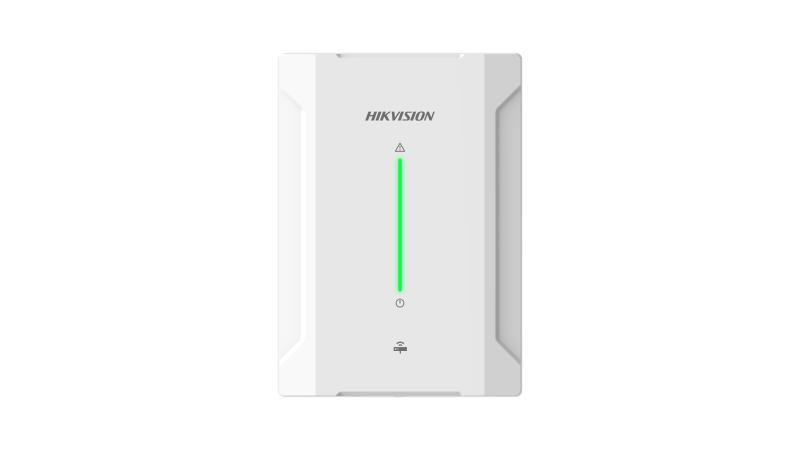

DS-PM1-RT-HWB

Tri-X Wireless Receiver

• 433MHz wireless receiver
• Wireless transmission distance up to 1300m
• Supports 32 wireless detectors，8 wireless indoor sounders and 4 wireless outdoor sounders

Specification

• Software features
• Compatibility list

  DS-PS1-I-WB

  DS-PS1-E-WB

  DS-PM1-O1L-WB

  DS-PM1-O1H-WB

  DS-PDP15P-EG2-WB

  DS-PDC15-EG2-WB

  DS-PDD12P-EG2-WB

  DS-PDMC-EG2-WB

  DS-PDMCS-EG2-WB

  DS-PDEB1-EG2-WB

  DS-PDEBP1-EG2-WB

  DS-PDWL-E-WB

  DS-PDPG12P-EG2-WB

  DS-PDMCK-EG2-WB

  DS-PDTPH-E-WB

  DS-PDCL12-EG2-WB

  DS-PDC10AM-EG2-WB

  DS-PDC10DM-EGW-WB

• Hardware features
• Bus1 Speed-X bus

• Electrical characteristics
• Power supply9 to 24 VDC
• Typical voltage12 VDC
• Power consumption

  Maximum current: 100 mA@12 VDC

  Quiescent current: 40 mA@12 VDC

• Wireless transmission
• RF frequency433 MHz
• Wireless securityFrequency hoping 128 AES encryption

• Display
• LED Indicator

  1. Green: power/find me

  2. Orange: alarm/fault

• General
• Dimension(WxHxD)110 mm × 155 mm × 32 mm
• Shell materialPlastic
• Weight233 g
• Operation temperature-10°C to 40°C
• Operation humidity10% to 90%

• Device management
• Alarm inputUp to 32 wireless detectors(portable emergency button is not included)
• Wireless sounderUp to 8 wireless indoor sounder, 4 wireless outdoor sounder
