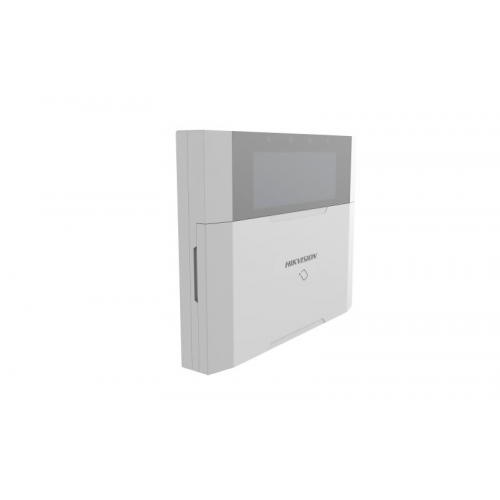

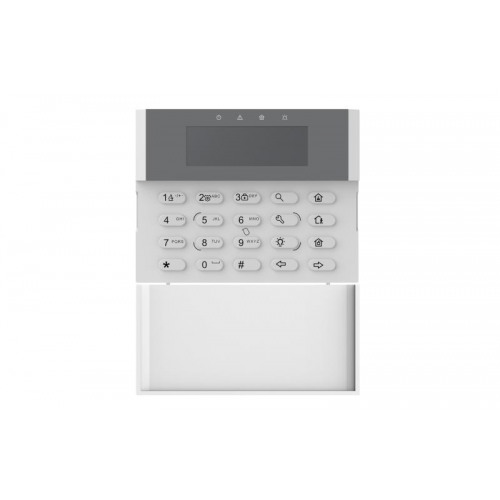

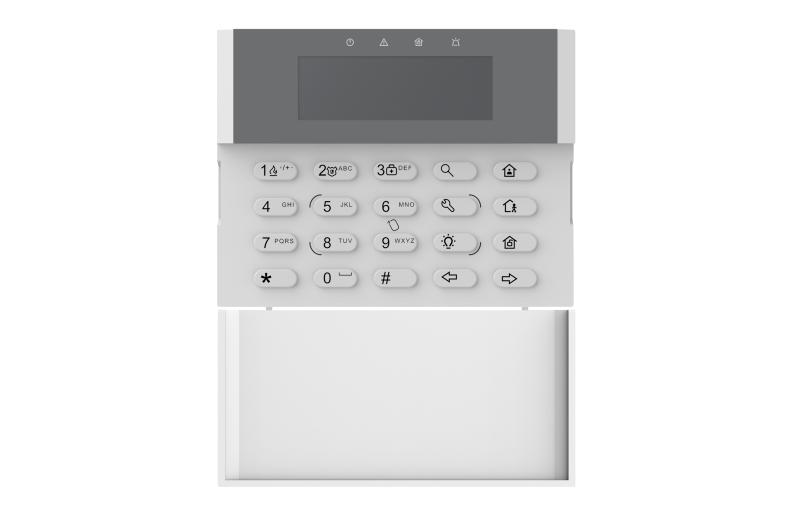

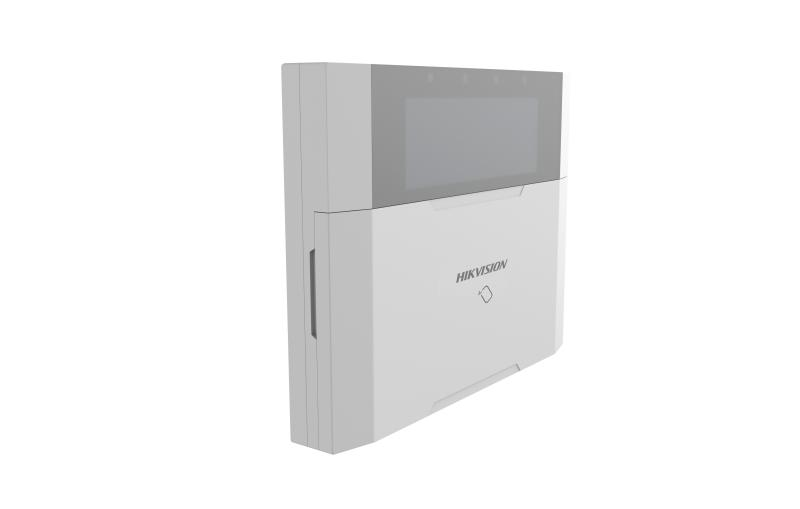

DS-PK1-LRT-HWB

Wired LCD Keypad

• LCD screen display
• Supports one-touch arm（Arming without password）
• Supports Fire/Panic/Medical alarm key
• Supports company name, phone number, time display
• Supports 2 on-board alarm inputs and 1 on-board alarm output
• Supports maximum 64 keyfobs

Specification

• Hardware features
• Tag reader built in1 Built-in Tag Reader
• Serial port1 TTL Serial Port
• Tamper-Proof1 Back-cover Tamper-switch（Will be damaged when tamper triggered）
• Buzzer1 On-board Buzzer
• Function key8 Function keys：Query，Away Aram，Stay Arm，Disarm，Alarm Output，Project，Left，Right
• RS-4851 Speed-X bus
• Alarm input2 On-board Alarm inputs
• Alarm output1 On-board Alarm output

• Electrical characteristics
• Power supply10.2 to 14.4 VDC
• Typical voltage12 VDC
• Power consumption

  Maximum current: 150mA@12VDC

  Quiescent current: 72mA@12VDC

• Wireless transmission
• RF frequency433MHz

• Display
• Numeric key0 to 9，*，#
• Display screenLCD Screen
• Indicator

  4 indicators and 1 backlight：

  1. Power：Green

  2. Faults：Fault-Orange / Alert-Flashing orange / Find me mode-flashing green

  3. Armed：Blue

  4. Alarm：Red

  5. Keypad button backlight：White

• General
• Dimension(WxHxD)150mmx115mmx28mm
• ColorWhite
• Operation temperature- 10 °C to + 55 °C (14 °F to 131 °F)
• Operation humidity10%～90%

• Device management
• Keyfob64
