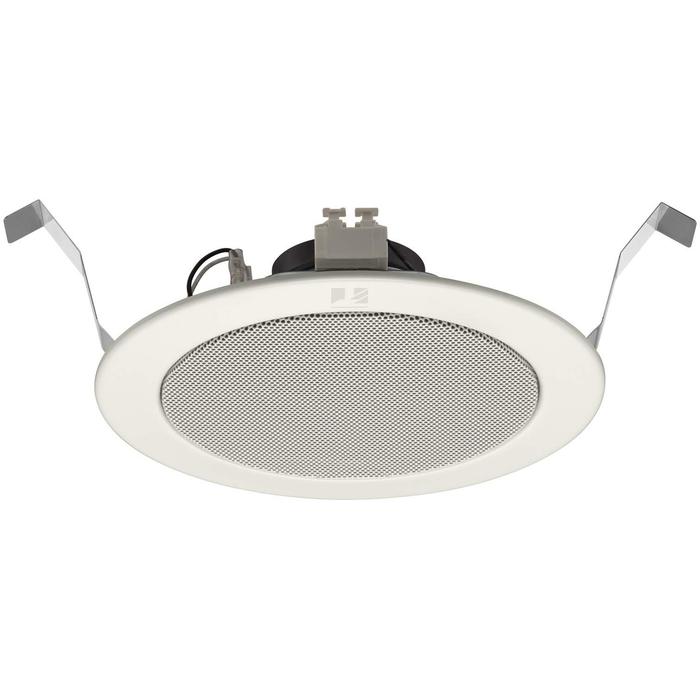

PC-658R TOA Ceiling Speaker

PC-658R TOA Ceiling Speaker

·         Rated Input : 6 W (100 V line), 3 W (70 V line)

·         Rated Impedance ; 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W) ; 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)

·         Sensitivity : 90 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)

·         Frequency Response : 65 Hz - 18 kHz (peak -20 dB)

·         Speaker Component : 16 cm (6") cone-type

·         Dimensions for Fixing Hole : Mounting hole: φ170±5 mm (φ6.69"±0.2") ; Ceiling thickness: 5 - 25 mm (0.2" - 0.98")

·         Speaker Mounting Method : Spring clamp

·         Finish : Baffle: Polypropylene resin, white (RAL 9016 equivalent) ; Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint

·         Dimensions : φ192 × 73 (D) mm (φ7.56" × 2.87")

·         Weight : 500 g (1.1 lb)
