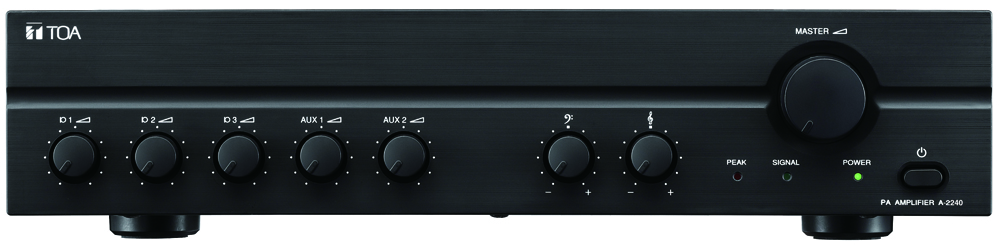

A-2240 Mixer Power Amplifier (H version)

A-2240 Mixer Power Amplifier (H version)

·         Power Source : 220 - 240 V AC, or 24 - 30 V DC

·         Rated Output : 240 W

·         Power Consumption : 238 W (EN60065), 520 W (AC operation at rated output), ; 15 A (DC operation at rated output)

·         Frequency Response: 50 - 20,000 Hz (±3 dB)

·         Distortion : Under 1% at 1 kHz, 1/3 rated power

·         Input : MIC 1 - 3: -60 dB*, 600 Ω, balanced, phone jack ; AUX 1,2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack

·         Output          Speaker : out: Balanced (floating) ; High impedance: 42 Ω (100 V), 21 Ω (70 V) ; Low impedance: 4 Ω (31 V) ; Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack

·         Phantom Power      : DC +21 V (MIC 1)

·         S/N Ratio : Over 60 dB

·         Tone Control: Bass: ±10 dB at 100 Hz ; Treble: ±10 dB at 10 kHz

·         Muting          : MIC 1: Mutes other input signals by 0 - 30 dB attenuation

·         Indicator : Power, signal, peak

·         Finish : Panel: ABS resin, black ; Case: Steel plate, black

·         Dimensions ; 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54" × 3.97" × 14.19")

·         Weight : 13.2 kg (29.1 lb)
