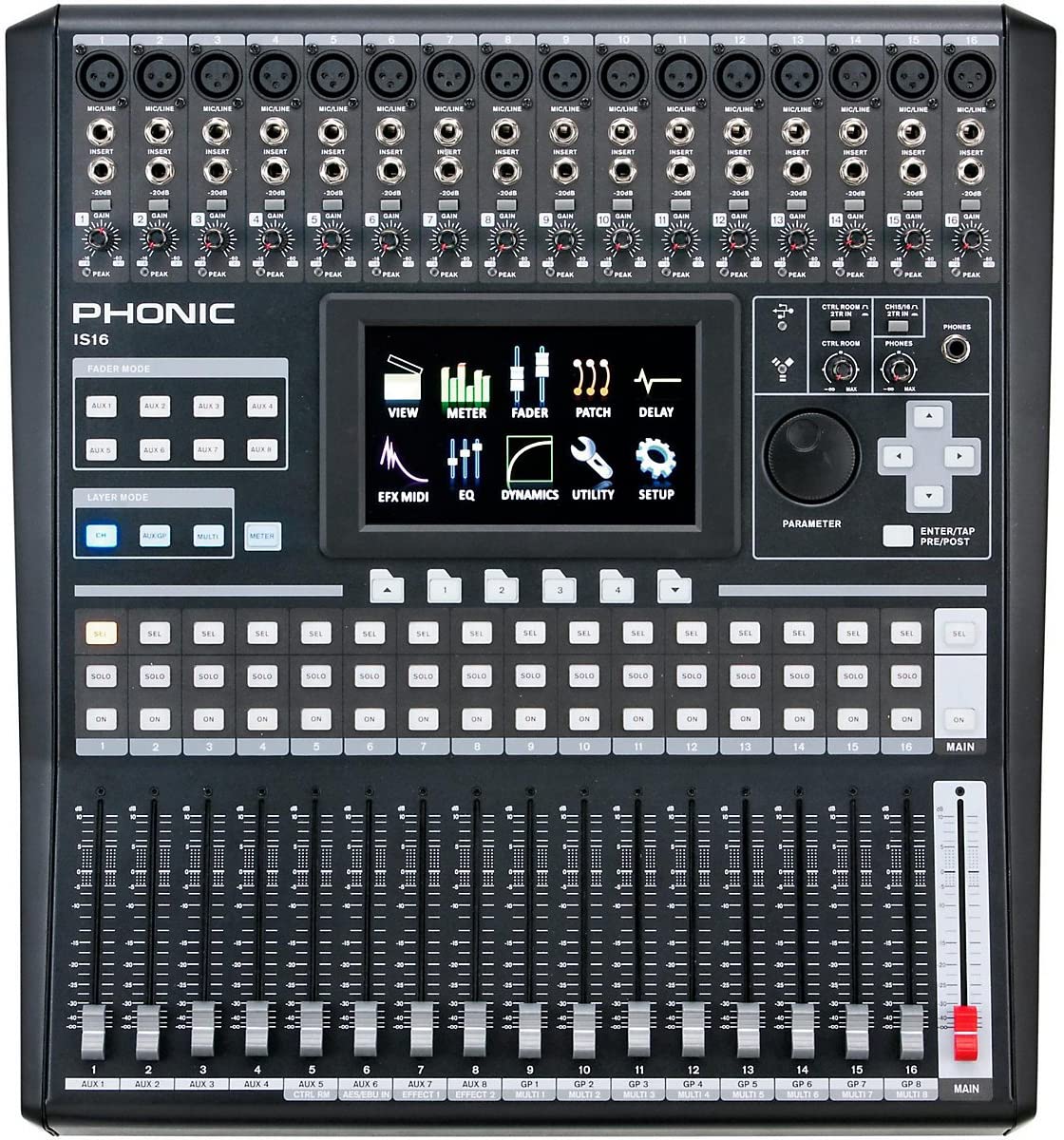

Phonic IS16 Digital Mixer

Phonic IS16 Digital Mixer

·         Analog Inputs: MIC In : 16 x XLR Balanced (ch 1-16) Line In : 16 x TRS Balanced jacks (Ch 1-16)

·         Insert I/O: 16 x Phone jacks (Unbalanced)

·         2TR IN Analog: 2 x RCA (Unbalanced)

·         Stereo Output: 2 x XLR Balanced 2 x RCA (Unbalanced)

·         Main Output: 2 x XLR Balanced

·         Control Room Output: 2 x XLR Balanced

·         Multi Outputs: 8 x TRS Balanced

·         AUX/Group Output: 8 x TRS Balanced (Shared through Multi)

·         Phones: 1 x Stereo Phone jack (TRS Unbalanced)

·         Digital I/O: (AES/EBU) 2 x XLR Balanced

·         Sampling Frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (40-Bit Floating Point Mixing)

·         Signal Delay (CH INPUT to STEREO OUT): Fs=48 kHz <1.2ms, Fs=96 kHz <0.6ms

·         Faders: 17 x 100mm motorized faders

·         Word Clock I/O: 2 x BNC Connectors

·         Distortion (THD + N): THD+N less than 0.007%, +4 dBu, 20-20 kHz, unity gain, 20 kHz BW

·         Frequency Response (CH INPUT to STEREO OUT): Fs=48, 96kHz, 0/-1.5dBu, 20 Hz “ 20 kHz @ +4dBu into 600Î

·         Hum & Noise: (20 Hz “ 20 kHz), Rs=150, -128dBu (EIN), -90dBu (residual output noise)

·         Optional Expansion Card: A standalone 16-channel PCM WAV recorder and a Firewire/USB 2.0 multitrack recording audio interface; USB 3.0 flash drives compatible

·         VGA Monitor output: D-Sub 15 pin: Progressive scan up to 1024x768p@60Hz (XGA)

·         Ethernet 10/100 Base: RJ45

·         USB 2.0 MIDI: Type B

·         USB 2.0 (Mouse and Wi-Fi): Type A x 2

·         Power Supply Unit: 100V “ 240V, 50/60 Hz, 90W

·         Dimensions (H x W x D): 6.46" x 1935" x 21")

·         Weight: 37.5lb
